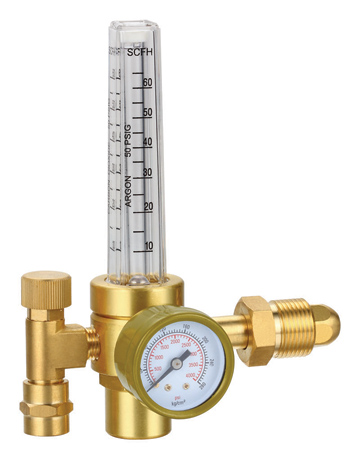

WR1300 is a regulator with flow-meter for special application in TiG and MiG welding. It is suitable for manufactory, construction
and installation industry.
WR1300 introduces a compact design with flow-meter integrated with regulator. The compact design makes it easy to carry and install.
WR1300 introduces piston-loaded design. Preset outlet pressure is at 3.5 bar. It can achieve precise control over the flow rate
between 0-60 SCFH.
WR1300 is suitable for gases such as Ar, CO2, He, and mixed gas.
Flow-meter employs shatter proof PC tube. It can be observed from all direction and won't crack under sudden crash.
Flow-meter employs visual-friendly dual scale for both Ar and CO2.
Body is forged from class A brass bar.
External relief valve ensures safety in use.
There are multi outlet coupling to choose.
Inlet is protected by a sintered bronze filter.
型号
MODEL |
气体
GAS |
流量
FLOW(CFH) |
最大进气压力
MAX INLET PRESSURE(bar) |
工作压力
WORKING PRESSURE(bar) |
| WR13003 |
ARGON 氩气 |
0-60 |
250 |
3.5 |
| WR13004 |
CO2 二氧化碳 |
0-60 |
250 |
3.5 | |
|
|
|
