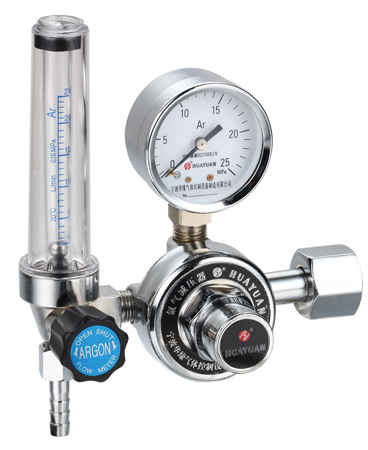

WR1561 is a regulator with flow-meter for special application in TiG and MiG
welding. It is suitable for manufactory, construction and installation industry.
Body is forged from class A brass bar and housing cap press-formed from steel
plate. Both of them are chrome-plated.
Preset outlet pressure of regulator is 3.5 bar.
Flow-meter can provide precise reading of outlet flow rate under pressure at
3.5 bar. It can achieve precise control over flow rate between 0-25L/min.
WR1561 is suitable for gases such as Ar, CO2, He, and mixed gas.
Flow-meter employs shatter proof PC tube. It can be observed from all direction
and won't crack under sudden crash.
External relief valve ensures safety in use.
Inlet is protected by a sintered bronze filter.
WR1561 is a special design for Chinese user.
型号
MODEL |
气体
GAS |
流量
FLOW(CFH) |
最大进气压力
MAX INLET PRESSURE(bar) |
工作压力
WORKING PRESSURE(bar) |
| WR15613 |
ARGON 氩气 |
0-25 |
250 |
3.5 |
| WR15614 |
CO2 二氧化碳 |
0-25 |
250 |
3.5 | |
|
|
|
