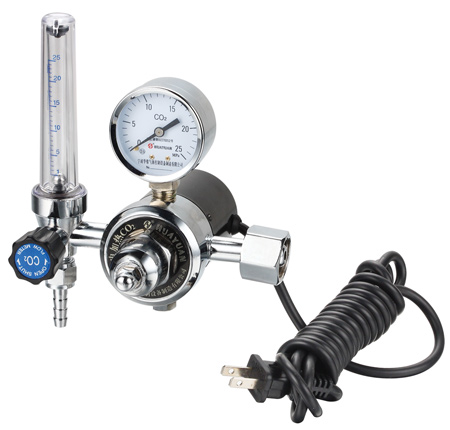

 WR1570E is a regulator for CO2 with electrical gas heater. It is suitable for applications using CO2 or other mixed gas as
a shielding gas.
Body forged from class A brass bar ensures maximum strength, serviceability and safety.
WR1570E introduces a compact design with heater integrated with body.
Automatic heater keeps temperature between 50℃-60℃, preventing regulator from frost.
Preset outlet pressure is at 3.5 bar.
Flow-meter can provide precise reading of outlet flow rate under pressure at 3.5 bar. It can achieve precise control over flow
rate between 0-25L/min.
Rear housing cap is made of inflame-retardant PC, ensuring insulation and flame-retardance.
There are three voltage variation to choose from, namely 36V, 110V and 220V. And two power specification of 150W and 190W .
型号
MODEL |
气体
GAS |
流量
FLOW(L/min) |
最大进气压力
MAX INLET PRESSURE(bar)
|
工作压力
WORKING PRESSURE(bar) |
功率
SUPPLY |
电压
VOLTAGE |
| WR15704EL |
CO2 二氧化碳 |
0-25 |
250 |
3.5 |
190W |
36V |
| WR15704EM |
CO2 二氧化碳 |
0-25 |
250 |
3.5 |
190W |
110V |
| WR15704EH |
CO2 二氧化碳 |
0-25 |
250 |
3.5 |
190W |
220V | |
|
|
|
