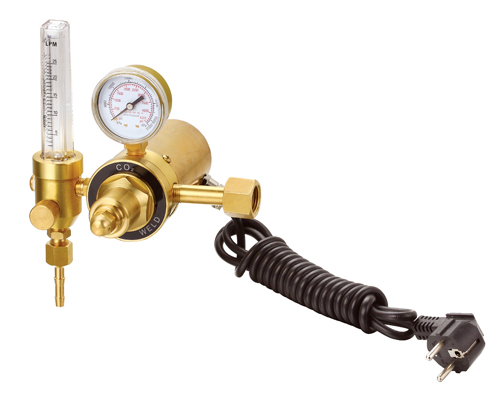

WR1600E is a regulator for CO2 with electrical gas heater. It is suitable for applications using
CO2 or other mixed gas as a shielding gas.
Body, housing cap and flow-meter forged from class A brass bar ensures maximum strength,
serviceability and safety. Chrome-plated surface makes it easy to clean.
WR1600E introduces a compact design with heater integrated with body.
Large internal engineering enables abundant and stable flow rate.
Automatic heater keeps temperature between 50℃-60℃, preventing regulator
from frost.
There are three voltage variation to choose from, namely 36V, 110V and 220V.
And power rating is at190W .
Inlet is protected by a sintered bronze filter.
1MPa=1000KPa=10.197 kgf/cm2=145.04 PSI 1m3/h=16.67 LPM=35.32 SCFH
型号
MODEL |
气体
GAS |
流量
FLOW(L/min) |
最大进气压力
MAX INLET PRESSURE(bar)
|
工作压力
WORKING PRESSURE(bar) |
功率
SUPPLY |
电压
VOLTAGE |
| WR16004EL |
CO2 二氧化碳 |
0-25 |
250 |
3.5 |
190W |
36V |
| WR16004EM |
CO2 二氧化碳 |
0-25 |
250 |
3.5 |
190W |
110V |
| WR16004EH |
CO2 二氧化碳 |
0-25 |
250 |
3.5 |
190W |
220V | |
|
|
|
