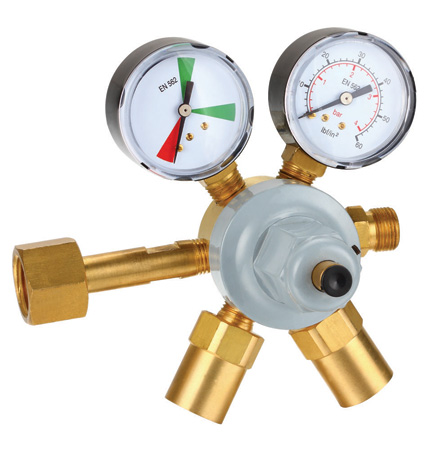

SR0570D is a medium regulator suitable for those who has special demand for
pressure and flow stability.
SR0570D can keep outlet pressure at a steady 2.6 bar, that of preset pressure,
when inlet pressure remains between 10-150 bar.
Highly-sensitive heavy-duty relief valve secures abundant discharge. Twin relief
valves ensure double discharge rate, double safety.
Body is forged from class A brass bar and Housing cap press-formed from
zinc-alloy plate. Both are coated with enamel finish.
SR0570D introduces twin gauges design. High pressure gauge employs visual-
friendly color chart while low pressure gauge employs dual scales of lbf/in2、bar.
Inlet is protected by a sintered bronze filter.
型号
MODEL |
气体
GAS |
最大进气压力
MAX INLET PRESSURE(bar) |
工作压力
WORKING PRESSURE(bar) |
| SR05705D |
CO2二氧化碳 |
250 |
2.6 |
| SR05706D |
NITROGEN 氮气 |
250 |
2.6 | |
|
|
|
