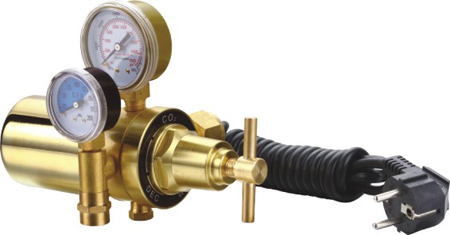

 WR1601E is a regulator for CO2 with electrical gas heater. It is suitable for applications using CO2 or other mixed gas as a shielding gas.
Body and housing cap forged from class A brass bar ensures maximum strength, serviceability and safety.
WR1601E introduces a compact design with heater integrated with body to provide better performance in heating.
Large internal engineering enables abundant and stable flow rate.
Automatic heater keeps temperature between 50℃-60℃.
Unique flow gauge design. It can achieve precise control over flow rate between 25-125CFH with pressure adjusting handle.
There are three voltage variation to choose from, namely 36V, 110V and 220V. And power rating is at190W .
Inlet is protected by a sintered bronze filter.
There are multi outlet coupling to choose.
型号
MODEL |
气体
GAS |
流量
FLOW(L/min) |
最大进气压力
MAX INLET PRESSURE(bar)
|
工作压力
WORKING PRESSURE(bar) |
功率
SUPPLY |
电压
VOLTAGE |
| WR16014EL |
CO2 二氧化碳 |
25-125 |
250 |
3.5 |
190W |
36V |
| WR16014EM |
CO2 二氧化碳 |
25-125 |
250 |
3.5 |
190W |
110V |
| WR16014EH |
CO2 二氧化碳 |
25-125 |
250 |
3.5 |
190W |
220V | |
|
|
|
